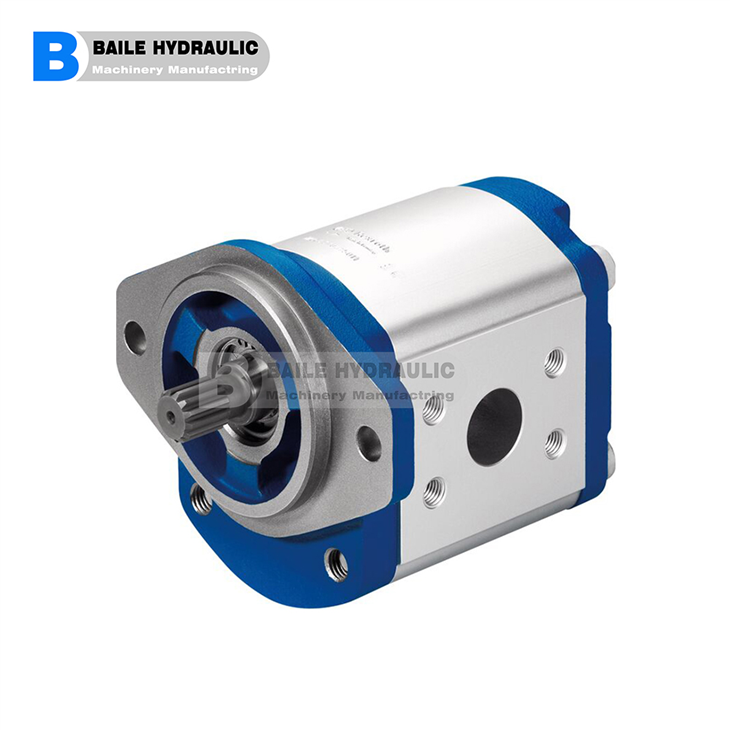

REXROTH External Gear Motor AZMF AZMF-1 AZMF-2
051142530005115253000511425001051152500105115253110511525304051162500505116253080511625009051162500305117253040511725005Features▶ Consistently high quality due to high-volumeseries production▶ Long service life▶ Wide speed range▶ Slide bearings for high loading▶ Optional reversible version for 2- and 4-quadrantoperation▶ Numerous configuration variants available▶ Output shafts according to ISO or SAE andcustomer-specific solutions▶ Line connections: Connection flanges orscrew-in threads▶ High pressures though small installation space andlow weight▶ Wide viscosity and temperature range▶ Platform F▶ Fixed displacement▶ Size 8 … 28▶ Continuous pressure up to 250 bar▶ Maximum start-up pressure up to 280 bar
0511425300 0511425304
0511525300
0511425001
0511525001
0511525311
0511525304
0511625005
0511625308
0511625009
0511625003
0511725304 0511425008
0511725005 0511425003
NG Order number Maximum start-up pressure p2 [bar] Maximum rotational speed [rpm] Dimensions Direction of rotation Counter-clockwise Clockwise A B C 8 0511425301 0511425002 210 4000 43.2 91.0 M6; min. 13 deep 11 0511525301 210 3500 47.0 96.0 16 0511625301 0511625001 210 3000 47.5 104.4 19 0511625300 0511625002 180 3000 47.5 109.4 22 0511725303 0511725004 180 3000 61.1 126.8
NG Order number Maximum start-up pressure p2 [bar] Maximum rotational speed [rpm] Dimensions Direction of rotation Counter-clockwise Clockwise A B C 8 0511415300 0511415001 250 4000 40.7 80.3 M6; min. 13 deep 11 0511515300 0511515001 250 3500 44.5 85.3 16 0511615301 0511615002 220 3000 45.0 93.7 19 0511615300 0511615001 190 3000 45.0 98.7 22 0511715300 0511715001 160 3000 52.6 104.1
NG Order number Maximum pressure at the pressure relief valve [bar] Maximum rotational speed [rpm] Dimensions Valve Connector Direction of rotation Counter-clockwise Clockwise A B C Order number Voltage [V] 8 0511425018 185 3000 43.2 109.0 M6; min. 13 deep 901070391 24 C4 (2pol.) 0511425017 110 3000 43.2 109.0 901104239 24 C4 (2pol.) 11 0511525314 185 3000 42.0 114.0 901122391 24 C4 (2pol.) 0511525025 2201) 3000 42.0 114.0 901122151 24 K40 (2pol.) 0511525024 2201) 3000 42.0 114.0 901122405 24 C4 (2pol.) 0511525315 0511525019 130 3000 42.0 114.0 901122416 24 C4 (2pol.) 14 0511525020 2201) 3000 42.0 119.0 901070405 24 C4 (2pol.) 0511525015 2201) 3000 42.0 119.0 901070386 12 C4 (2pol.) 0511525016 185 3000 42.0 119.0 901070387 12 C4 (2pol.) 0511525017 155 3000 42.0 119.0 901070407 12 C4 (2pol.) 0511525026 110 3000 42.0 119.0 901070756 12 K40 (2pol.) 16 0511625315 155 3000 42.0 122.4 907047407 12 C4 (2pol.) 0511625034 110 3000 42.0 122.4 901070756 12 K40 (2pol.) 0511625033 250 3000 42.0 122.4 901250625 24 K40 (2pol.) 0511625317 0511625029 2201) 3000 42.0 122.4 901070736 12 K40 (2pol.) 0511625313 2201) 3000 42.0 122.4 901070386 12 C4 (2pol.) 0511625030 2201) 3000 42.0 122.4 907047405 24 C4 (2pol.) 0511625024 2201) 3000 42.0 122.4 901070386 12 C4 (2pol.) 19 0511625311 185 3000 47.5 127.4 901122391 24 C4 (2pol.) 0511625312 2201) 3000 47.5 127.4 901122151 24 K40 (2pol.) 0511625026 2201) 3000 47.5 127.4 901070736 12 K40 (2pol.) 0511625027 2201) 3000 47.5 127.4 901122405 24 C4 (2pol.) 0511625023 1501) 3000 47.5 127.4 901122386 12 C4 (2pol.) 22 0511725029 2201) 3000 55.1 132.8 901070405 24 C4 (2pol.) 0511725031 2201) 3000 55.1 132.8 901070736 12 K40 (2pol.) 0511725035 2201) 3000 55.1 132.8 901236512 24 C4 (2pol.) 0511725028 2201) 3000 55.1 132.8 901070386 12 C4 (2pol.)
NG Order number Maximum pressure at the pressure relief valve [bar] Maximum rotational speed [rpm] Dimensions Valve Connector Direction of rotation Counter-clockwise Clockwise A B C Order number Voltage [V] 11 0511525313 185 3500 42.0 114.0 M6; min. 13 deep 901101014 24 K46 (Kostal) 16 0511625316 0511625025 2201) 3000 47.5 122.4 901101327 24 K46 (Kostal) 22 0511725314 2201) 3000 55.1 132.8 901101327 24 K46 (Kostal) 0511725040 2201) 3000 55.1 132.8 901267110 24 K46 (Kostal) 0511725039 2201) 3000 55.1 132.8 901267111 12 K46 (Kostal)
